RHESSIMap#
- class sunpy.map.sources.RHESSIMap(data, header, **kwargs)[source]#
Bases:
GenericMap

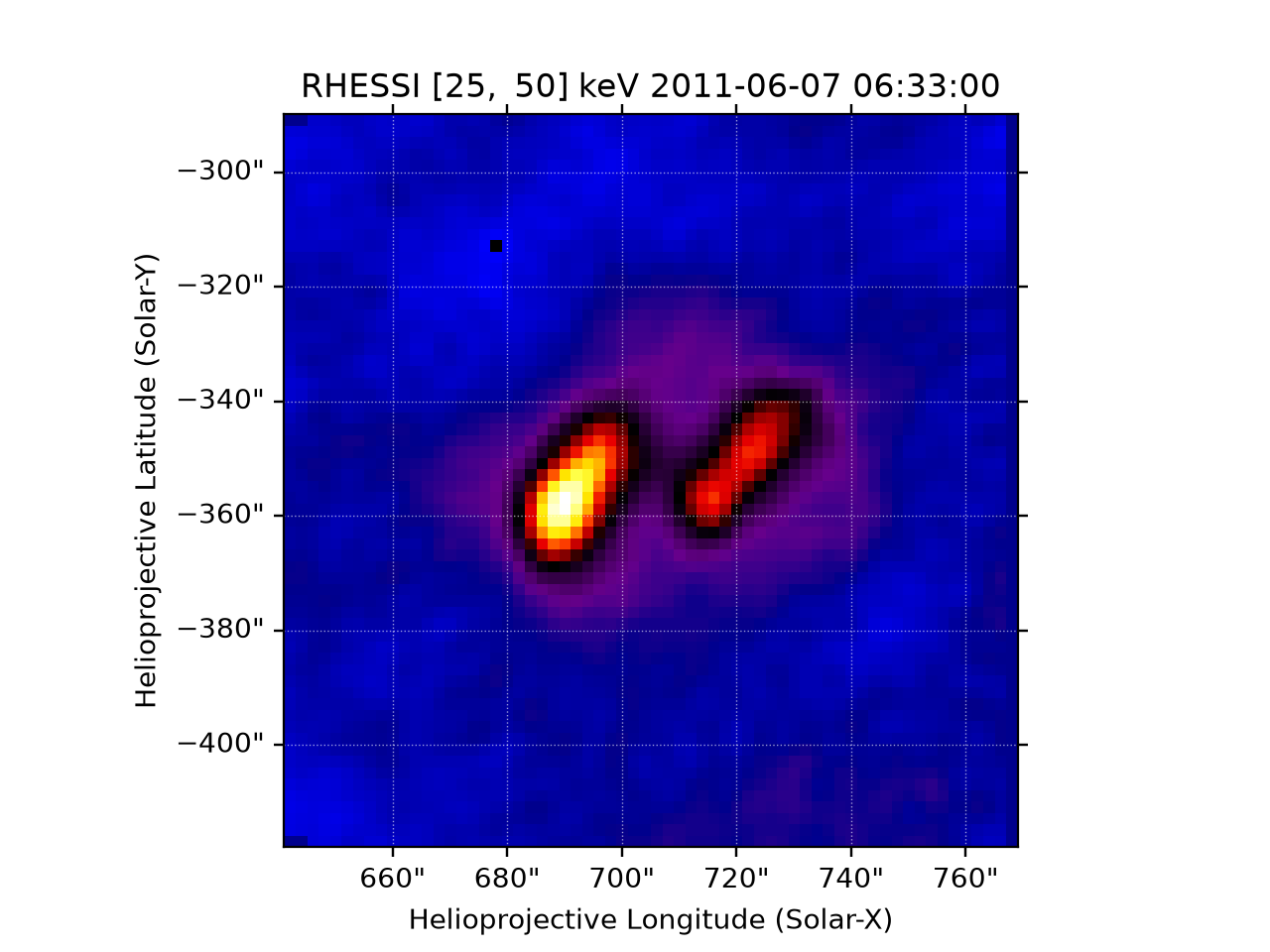

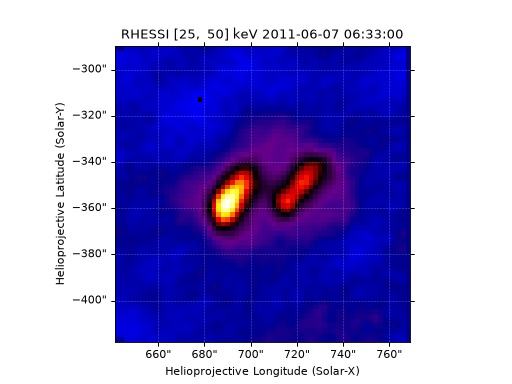

RHESSI Image Map.
The RHESSI mission consists of a single spin-stabilized spacecraft in a low-altitude orbit inclined 38 degrees to the Earth’s equator. The only instrument on board is an Germaniun imaging spectrometer with the ability to obtain high fidelity solar images in X rays (down to 3 keV) to gamma rays (1 MeV).
RHESSI provides an angular resolution of 2 arcseconds at X-ray energies below ~40 keV, 7 arcseconds to 400 keV, and 36 arcseconds for gamma-ray lines and continuum above 1 MeV.
RHESSI was launched on 5 February 2002.
Notes
A number of the properties of this class are returned as two-value named tuples that can either be indexed by position ([0] or [1]) or be accessed by the names (.x and .y) or (.axis1 and .axis2). Things that refer to pixel axes use the
.x
,.y
convention, where x and y refer to the FITS axes (x for columns y for rows). Spatial axes use.axis1
and.axis2
which correspond to the first and second axes in the header.axis1
corresponds to the coordinate axis forx
andaxis2
corresponds toy
.This class assumes that the metadata adheres to the FITS 4 standard. Where the CROTA2 metadata is provided (without PC_ij) it assumes a conversion to the standard PC_ij described in section 6.1 of . Calabretta & Greisen (2002)
Warning
If a header has CD_ij values but no PC_ij values, CDELT values are required for this class to construct the WCS. If a file with more than two dimensions is feed into the class, only the first two dimensions (NAXIS1, NAXIS2) will be loaded and the rest will be discarded.
References
RHESSI Homepage https://hesperia.gsfc.nasa.gov/rhessi3/index.html
Mission Paper https://doi.org/10.1023/A:1022428818870
Warning
Cannot read fits files containing more than one image.
Attributes Summary
The physical coordinate at the center of the bottom left ([0, 0]) pixel.
Observer Carrington latitude.
Observer Carrington longitude.
Return a coordinate object for the center pixel of the array.
Return the
matplotlib.colors.Colormap
instance this map uses.An
astropy.coordinates.BaseCoordinateFrame
instance created from the coordinate information for this Map, or None if the frame cannot be determined.If CTYPE{1 or 2} are equal to 'arcsec', assumes that CTYPE{1 or 2} respectively are intended to be 'HPLN-TAN' or 'HPLT-TAN'.
The stored dataset.
The observation time.
Average time of the image acquisition.
Time of the end of the image acquisition.
Time of the beginning of the image acquisition.
Detector name.
The dimensions of the array (x axis first, y axis second).
Observer distance from the center of the Sun.
The
numpy.dtype
of the array of the map.Exposure time of the image.
A
Header
representation of themeta
attribute.Observer heliographic latitude.
Observer heliographic longitude.
Instrument name.
LaTeX formatted description of the Map.
Mask for the dataset, if any.
Measurement wavelength.
Human-readable description of the Map.
The value of
numpy.ndarray.ndim
of the data array of the map.An abbreviated human-readable description of the map-type; part of the Helioviewer data model.
Observatory or Telescope name.
The Heliographic Stonyhurst Coordinate of the observer.
Returns the FITS processing level if present.
Image representation of the PSF for the dataset.
Unitful representation of the map data.
Reference point WCS axes in data units (i.e. crval1, crval2).
The reference date for the coordinate system.
Pixel of reference coordinate.
Matrix describing the transformation needed to align the reference pixel with the coordinate axes.
Assumed radius of observed emission from the Sun center.
Angular radius of the observation from Sun center.
Image scale along the x and y axes in units/pixel (i.e. cdelt1, cdelt2).
If CTYPE{1 or 2} are equal to 'arcsec', assumes that CTYPE{1 or 2} respectively are intended to be 'arcsec'.
The
Unit
of the exposure time of this observation.The physical coordinate at the center of the the top right ([-1, -1]) pixel.
Uncertainty in the dataset, if any.
Unit of the map data.
Wavelength of the observation.
If the WAVEUNIT FITS keyword is not present, defaults to keV.
The
WCS
property of the map.Methods Summary
contour
(level, **kwargs)draw_contours
(levels[, axes, fill])Draw contours of the data.
draw_grid
([axes, grid_spacing, annotate, system])Draws a coordinate overlay on the plot in the Heliographic Stonyhurst coordinate system.
draw_limb
([axes, resolution])Draws the solar limb as seen by the map's observer.
draw_quadrangle
(bottom_left, *[, width, ...])Draw a quadrangle defined in world coordinates on the plot using Astropy's
Quadrangle
.get_contours
(level[, method])Returns coordinates of the contours for a given level value.
is_datasource_for
(data, header, **kwargs)Determines if header corresponds to an RHESSI image
max
(*args, **kwargs)Calculate the maximum value of the data array, ignoring NaNs.
mean
(*args, **kwargs)Calculate the mean of the data array, ignoring NaNs.
min
(*args, **kwargs)Calculate the minimum value of the data array, ignoring NaNs.
peek
([draw_limb, draw_grid, colorbar])Displays a graphical overview of the data in this object for user evaluation.
pixel_to_world
(x, y)Convert a pixel coordinate to a data (world) coordinate.
plot
(*[, annotate, axes, title, autoalign, ...])Plots the map object using matplotlib, in a method equivalent to
imshow()
using nearest neighbor interpolation.Display a quicklook summary of the Map instance using the default web browser.
reproject_to
(target_wcs, *[, algorithm, ...])Reproject the map to a different world coordinate system (WCS)
resample
(dimensions[, method])Resample to new dimension sizes.
rotate
([angle, rmatrix, order, scale, ...])Returns a new rotated and rescaled map.
save
(filepath[, filetype])Save a map to a file.
shift_reference_coord
(axis1, axis2)Returns a map shifted by a specified amount to, for example, correct for a bad map location.
std
(*args, **kwargs)Calculate the standard deviation of the data array, ignoring NaNs.
submap
(bottom_left, *[, top_right, width, ...])Returns a submap defined by a rectangle.
superpixel
(dimensions[, offset, func])Returns a new map consisting of superpixels formed by applying 'func' to the original map data.
world_to_pixel
(coordinate)Convert a world (data) coordinate to a pixel coordinate.
Attributes Documentation
- bottom_left_coord#
The physical coordinate at the center of the bottom left ([0, 0]) pixel.
- carrington_latitude#
Observer Carrington latitude.
- carrington_longitude#
Observer Carrington longitude.
- center#
Return a coordinate object for the center pixel of the array.
If the array has an even number of pixels in a given dimension, the coordinate returned lies on the edge between the two central pixels.
- cmap#
Return the
matplotlib.colors.Colormap
instance this map uses.
- coordinate_frame#
An
astropy.coordinates.BaseCoordinateFrame
instance created from the coordinate information for this Map, or None if the frame cannot be determined.Notes
The
obstime
for the coordinate frame uses thereference_date
property, which may be different from thedate
property.
- coordinate_system#
If CTYPE{1 or 2} are equal to ‘arcsec’, assumes that CTYPE{1 or 2} respectively are intended to be ‘HPLN-TAN’ or ‘HPLT-TAN’.
- date#
The observation time.
This time is the “canonical” way to refer to an observation, which is commonly the start of the observation, but can be a different time. In comparison, the
GenericMap.date_start
property is unambigiously the start of the observation.The observation time is determined using this order of preference:
The
DATE-OBS
orDATE_OBS
FITS keywordsThe current time
See also
reference_date
The reference date for the the coordinate system
date_start
The start time of the observation.
date_end
The end time of the observation.
date_average
The average time of the observation.
- date_average#
Average time of the image acquisition.
Taken from the DATE-AVG FITS keyword if present, otherwise halfway between
date_start
anddate_end
if both pieces of metadata are present.
- date_end#
Time of the end of the image acquisition.
Taken from the DATE-END FITS keyword.
- date_start#
Time of the beginning of the image acquisition.
Taken from the DATE-BEG FITS keyword.
- detector#
- dimensions#
The dimensions of the array (x axis first, y axis second).
- dsun#
Observer distance from the center of the Sun.
- dtype#
The
numpy.dtype
of the array of the map.
- exposure_time#
Exposure time of the image.
This is taken from the ‘XPOSURE’ keyword or the ‘EXPTIME’ FITS keyword, in that order.
- heliographic_latitude#
Observer heliographic latitude.
- heliographic_longitude#
Observer heliographic longitude.
- instrument#
Instrument name.
- latex_name#
LaTeX formatted description of the Map.
- mask#
Mask for the dataset, if any.
Masks should follow the
numpy
convention that valid data points are marked byFalse
and invalid ones withTrue
.- Type:
any type
- measurement#
Measurement wavelength.
This is taken from the ‘WAVELNTH’ FITS keywords. If the keyword is not present, defaults to
None
. If ‘WAVEUNIT’ keyword isn’t present, defaults to dimensionless units.
- meta = None#
- name#
Human-readable description of the Map.
- ndim#
The value of
numpy.ndarray.ndim
of the data array of the map.
- nickname#
An abbreviated human-readable description of the map-type; part of the Helioviewer data model.
- observatory#
Observatory or Telescope name.
This is taken from the ‘OBSRVTRY’ FITS keyword.
- observer_coordinate#
The Heliographic Stonyhurst Coordinate of the observer.
Notes
The
obstime
for this coordinate uses thereference_date
property, which may be different from thedate
property.
- processing_level#
Returns the FITS processing level if present.
This is taken from the ‘LVL_NUM’ FITS keyword.
- psf#
- quantity#
Unitful representation of the map data.
- reference_coordinate#
Reference point WCS axes in data units (i.e. crval1, crval2). This value includes a shift if one is set.
- reference_date#
The reference date for the coordinate system.
This date is used to define the
obstime
of the coordinate frame and often theobstime
of the observer. Be aware that this date can be different from the “canonical” observation time (see theGenericMap.date
property).The reference date is determined using this order of preference:
The
DATE-AVG
key in the meta.The
DATE-OBS
key in the meta.The
DATE-BEG
key in the meta.The
DATE-END
key in the meta.The
GenericMap.date
property as a fallback (which, if not overridden, would be the current time if the above keywords are missing).
See also
date
The observation time.
date_start
The start time of the observation.
date_end
The end time of the observation.
date_average
The average time of the observation.
Notes
The FITS standard implies that, but does not expressly require, the DATE-AVG keyword to be the reference date.
- reference_pixel#
Pixel of reference coordinate.
The pixel returned uses zero-based indexing, so will be 1 pixel less than the FITS CRPIX values.
- rotation_matrix#
Matrix describing the transformation needed to align the reference pixel with the coordinate axes.
The order or precedence of FITS keywords which this is taken from is: - PC*_* - CD*_* - CROTA*
Notes
In many cases this is a simple rotation matrix, hence the property name. It general it does not have to be a pure rotation matrix, and can encode other transformations e.g., skews for non-orthgonal coordinate systems.
- rsun_meters#
Assumed radius of observed emission from the Sun center.
This is taken from the RSUN_REF FITS keyword, if present. If not, and angular radius metadata is present, it is calculated from
rsun_obs
anddsun
. If neither pieces of metadata are present, defaults to the standard photospheric radius.
- rsun_obs#
Angular radius of the observation from Sun center.
This value is taken (in order of preference) from the ‘RSUN_OBS’, ‘SOLAR_R’, or ‘RADIUS’ FITS keywords. If none of these keys are present, the angular radius is calculated from
rsun_meters
anddsun
.
- scale#
Image scale along the x and y axes in units/pixel (i.e. cdelt1, cdelt2).
If the CDij matrix is defined but no CDELTi values are explicitly defined, effective CDELTi values are constructed from the CDij matrix. The effective CDELTi values are chosen so that each row of the PCij matrix has unity norm. This choice is optimal if the PCij matrix is a pure rotation matrix, but may not be as optimal if the PCij matrix includes any skew.
- spatial_units#
If CTYPE{1 or 2} are equal to ‘arcsec’, assumes that CTYPE{1 or 2} respectively are intended to be ‘arcsec’.
- timeunit#
The
Unit
of the exposure time of this observation.Taken from the “TIMEUNIT” FITS keyword, and defaults to seconds (as per) the FITS standard).
- top_right_coord#
The physical coordinate at the center of the the top right ([-1, -1]) pixel.
- uncertainty#
Uncertainty in the dataset, if any.
Should have an attribute
uncertainty_type
that defines what kind of uncertainty is stored, such as'std'
for standard deviation or'var'
for variance. A metaclass defining such an interface isNDUncertainty
but isn’t mandatory.- Type:
any type
- unit#
Unit of the map data.
This is taken from the ‘BUNIT’ FITS keyword. If no ‘BUNIT’ entry is present in the metadata then this returns
None
. If the ‘BUNIT’ value cannot be parsed into a unit a warning is raised, andNone
returned.
- wavelength#
- waveunit#
If the WAVEUNIT FITS keyword is not present, defaults to keV.
- wcs#
The
WCS
property of the map.Notes
dateobs
is always populated with the “canonical” observation time as provided by thedate
property. This will commonly be the DATE-OBS key if it is in the metadata, but see that property for the logic otherwise.dateavg
is always populated with the reference date of the coordinate system as provided by thereference_date
property. This will commonly be the DATE-AVG key if it is in the metadata, but see that property for the logic otherwise.datebeg
is conditonally populated with the start of the observation period as provided by thedate_start
property, which normally returns a value only if the DATE-BEG key is in the metadata.dateend
is conditonally populated with the end of the observation period as provided by thedate_end
property, which normally returns a value only if the DATE-END key is in the metadata.
Methods Documentation
- contour(level, **kwargs)#
Deprecated since version 6.1: The contour function is deprecated and may be removed in a future version. Use sunpy.map.GenericMap.get_contours instead.
Returns coordinates of the contours for a given level value.
For details of the contouring algorithm see
skimage.measure.find_contours
.- Parameters:
level (float,
Quantity
) – Value along which to find contours in the array. If the map unit attribute is notNone
, this must be aQuantity
with units equivalent to the map data units.kwargs – Additional keyword arguments are passed to
skimage.measure.find_contours
.
- Returns:
contours (list of (n,2)
SkyCoord
) – Coordinates of each contour.
Examples
>>> import astropy.units as u >>> import sunpy.map >>> import sunpy.data.sample >>> aia = sunpy.map.Map(sunpy.data.sample.AIA_171_IMAGE) >>> contours = aia.contour(50000 * u.DN) >>> contours[0] <SkyCoord (Helioprojective: obstime=2011-06-07T06:33:02.880, rsun=696000.0 km, observer=<HeliographicStonyhurst Coordinate (obstime=2011-06-07T06:33:02.880, rsun=696000.0 km): (lon, lat, radius) in (deg, deg, m) (-0.00406429, 0.04787238, 1.51846026e+11)>): (Tx, Ty) in arcsec [(719.59798458, -352.60839064), (717.19243987, -353.75348121), (715.8820808 , -354.75140718), (714.78652558, -355.05102034), (712.68209174, -357.14645009), (712.68639008, -359.54923801), (713.14112796, -361.95311455), (714.76598031, -363.53013567), (717.17229147, -362.06880784), (717.27714042, -361.9631112 ), (718.43620686, -359.56313541), (718.8672722 , -357.1614 ), (719.58811599, -356.68119768), (721.29217122, -354.76448374), (719.59798458, -352.60839064)]>
See also
- draw_contours(levels, axes=None, *, fill=False, **contour_args)#
Draw contours of the data.
- Parameters:
levels (
Quantity
) – A list of numbers indicating the contours to draw. These are given as a percentage of the maximum value of the map data, or in units equivalent to theunit
attribute.axes (
matplotlib.axes.Axes
) – The axes on which to plot the contours. Defaults to the current axes.fill (
bool
, optional) – Determines the style of the contours: - IfFalse
(default), contours are drawn as lines usingcontour()
. - IfTrue
, contours are drawn as filled regions usingcontourf()
.
- Returns:
cs (
list
) – TheQuadContourSet
object, after it has been added toaxes
.
Notes
Extra keyword arguments to this function are passed through to the corresponding matplotlib method.
- draw_grid(axes=None, grid_spacing: Unit("deg") = <Quantity 15. deg>, annotate=True, system='stonyhurst', **kwargs)#
Draws a coordinate overlay on the plot in the Heliographic Stonyhurst coordinate system.
To overlay other coordinate systems see the WCSAxes Documentation
- Parameters:
axes (
axes
orNone
) – Axes to plot limb on, orNone
to use current axes.grid_spacing (
Quantity
) – Spacing for longitude and latitude grid, if length two it specifies (lon, lat) spacing.annotate (
bool
) – PassingFalse
disables the axes labels and the ticks on the top and right axes.system (str) – Coordinate system for the grid. Must be ‘stonyhurst’ or ‘carrington’.
kwargs – Additional keyword arguments are passed to
wcsaxes_heliographic_overlay
.
- Returns:
overlay (
CoordinatesMap
) – The wcsaxes coordinate overlay instance.
Notes
Keyword arguments are passed onto the
sunpy.visualization.wcsaxes_compat.wcsaxes_heliographic_overlay
function.
- draw_limb(axes=None, *, resolution=1000, **kwargs)#
Draws the solar limb as seen by the map’s observer.
The limb is a circle for only the simplest plots. If the coordinate frame of the limb is different from the coordinate frame of the plot axes, not only may the limb not be a true circle, a portion of the limb may be hidden from the observer. In that case, the circle is divided into visible and hidden segments, represented by solid and dotted lines, respectively.
- Parameters:
- Returns:
Notes
Keyword arguments are passed onto the patches.
If the limb is a true circle,
visible
will instead beCircle
andhidden
will beNone
. If there are no visible points (e.g., on a synoptic map any limb is fully) visiblehidden
will beNone
.To avoid triggering Matplotlib auto-scaling, these patches are added as artists instead of patches. One consequence is that the plot legend is not populated automatically when the limb is specified with a text label. See Composing Custom Legends in the Matplotlib documentation for examples of creating a custom legend.
- draw_quadrangle(bottom_left, *, width: Unit('deg'), Unit('pix') = None, height: Unit('deg'), Unit('pix') = None, axes=None, top_right=None, **kwargs)#
Draw a quadrangle defined in world coordinates on the plot using Astropy’s
Quadrangle
.This draws a quadrangle that has corners at
(bottom_left, top_right)
, and has sides aligned with the coordinate axes of the frame ofbottom_left
, which may be different from the coordinate axes of the map.If
width
andheight
are specified, they are respectively added to the longitude and latitude of thebottom_left
coordinate to calculate atop_right
coordinate.- Parameters:
bottom_left (
SkyCoord
orQuantity
) – The bottom-left coordinate of the rectangle. If aSkyCoord
it can have shape(2,)
and simultaneously definetop_right
. If specifying pixel coordinates it must be given as anQuantity
object with pixel units (e.g.,pix
).top_right (
SkyCoord
orQuantity
, optional) – The top-right coordinate of the quadrangle. Iftop_right
is specifiedwidth
andheight
must be omitted.width (
astropy.units.Quantity
, optional) – The width of the quadrangle. Required iftop_right
is omitted.height (
astropy.units.Quantity
) – The height of the quadrangle. Required iftop_right
is omitted.axes (
matplotlib.axes.Axes
) – The axes on which to plot the quadrangle. Defaults to the current axes.
- Returns:
quad (
Quadrangle
) – The added patch.
Notes
Extra keyword arguments to this function are passed through to the
Quadrangle
instance.Examples
AIA to STEREO coordinate conversion
AIA to STEREO coordinate conversionDrawing a latitude-longitude quadrangle
Drawing a latitude-longitude quadrangleDrawing a rotated rectangle on a map
Drawing a rotated rectangle on a mapComparing differential-rotation models
Comparing differential-rotation modelsHMI Showcase: Cutout
- get_contours(level, method='contourpy', **kwargs)#
Returns coordinates of the contours for a given level value.
For details of the contouring algorithm, see
contourpy.contour_generator()
orcontourpy.contour_generator()
.- Parameters:
level (float, astropy.units.Quantity) – Value along which to find contours in the array. If the map unit attribute is not
None
, this must be aQuantity
with units equivalent to the map data units.method ({‘contourpy’, ‘skimage’}) – Determines which contouring method is used and should be specified as either ‘contourpy’ or ‘skimage’. Defaults to ‘contourpy’.
kwargs – Additional keyword arguments passed to either
contourpy.contour_generator()
orskimage.measure.find_contours()
, depending on the value of themethod
argument.
- Returns:
contours (list of (n,2)
SkyCoord
) – Coordinates of each contour.
Examples
>>> import astropy.units as u >>> import sunpy.map >>> import sunpy.data.sample >>> aia = sunpy.map.Map(sunpy.data.sample.AIA_171_IMAGE) >>> contours = aia.get_contours(50000 * u.DN, method='contourpy') >>> contours[0] <SkyCoord (Helioprojective: obstime=2011-06-07T06:33:02.880, rsun=696000.0 km, observer=<HeliographicStonyhurst Coordinate (obstime=2011-06-07T06:33:02.880, rsun=696000.0 km): (lon, lat, radius) in (deg, deg, m) (-0.00406429, 0.04787238, 1.51846026e+11)>): (Tx, Ty) in arcsec [(713.14112796, -361.95311455), (714.76598031, -363.53013567), (717.17229147, -362.06880784), (717.27714042, -361.9631112 ), (718.43620686, -359.56313541), (718.8672722 , -357.1614 ), (719.58811599, -356.68119768), (721.29217122, -354.76448374), (722.00110323, -352.46446792), (722.08933899, -352.36363319), (722.00223989, -351.99536019), (721.67724425, -352.36263712), (719.59798458, -352.60839064), (717.19243987, -353.75348121), (715.8820808 , -354.75140718), (714.78652558, -355.05102034), (712.68209174, -357.14645009), (712.68639008, -359.54923801), (713.14112796, -361.95311455)]>
- classmethod is_datasource_for(data, header, **kwargs)[source]#
Determines if header corresponds to an RHESSI image
- max(*args, **kwargs)#
Calculate the maximum value of the data array, ignoring NaNs.
- mean(*args, **kwargs)#
Calculate the mean of the data array, ignoring NaNs.
- min(*args, **kwargs)#
Calculate the minimum value of the data array, ignoring NaNs.
- peek(draw_limb=False, draw_grid=False, colorbar=True, **matplot_args)#
Displays a graphical overview of the data in this object for user evaluation. For the creation of plots, users should instead use the
plot
method and Matplotlib’s pyplot framework.- Parameters:
draw_limb (bool) – Whether the solar limb should be plotted.
draw_grid (bool or
Quantity
) – Whether solar meridians and parallels are plotted. IfQuantity
then sets degree difference between parallels and meridians.colorbar (bool) – Whether to display a colorbar next to the plot.
**matplot_args (dict) – Matplotlib Any additional imshow arguments that should be used when plotting.
- pixel_to_world(x: Unit('pix'), y: Unit('pix'))#
Convert a pixel coordinate to a data (world) coordinate.
- Parameters:
- Returns:
coord (
astropy.coordinates.SkyCoord
) – A coordinate object representing the output coordinate.
- plot(*, annotate=True, axes=None, title=True, autoalign=False, clip_interval: Unit('%') = None, **imshow_kwargs)#
Plots the map object using matplotlib, in a method equivalent to
imshow()
using nearest neighbor interpolation.- Parameters:
annotate (
bool
, optional) – IfTrue
, the data is plotted at its natural scale; with title and axis labels.axes (
Axes
or None) – If provided the image will be plotted on the given axes. Else the current Matplotlib axes will be used.title (
str
,bool
, optional) – The plot title. IfTrue
, uses the default title for this map.clip_interval (two-element
Quantity
, optional) – If provided, the data will be clipped to the percentile interval bounded by the two numbers.autoalign (
bool
orstr
, optional) – If other thanFalse
, the plotting accounts for any difference between the WCS of the map and the WCS of theWCSAxes
axes (e.g., a difference in rotation angle). Ifpcolormesh
, this method will usepcolormesh()
instead of the defaultimshow()
. SpecifyingTrue
is equivalent to specifyingpcolormesh
.**imshow_kwargs (
dict
) – Any additional imshow arguments are passed toimshow()
.
Examples
>>> # Simple Plot with color bar >>> aia.plot() >>> plt.colorbar() >>> # Add a limb line and grid >>> aia.plot() >>> aia.draw_limb() >>> aia.draw_grid()
Notes
The
autoalign
functionality is computationally intensive. If the plot will be interactive, the alternative approach of preprocessing the map (e.g., de-rotating it) to match the desired axes will result in better performance.When combining
autoalign
functionality withHelioprojective
coordinates, portions of the map that are beyond the solar disk may not appear, which may also inhibit Matplotlib’s autoscaling of the plot limits. The plot limits can be set manually. To preserve the off-disk parts of the map, using theSphericalScreen
context manager may be appropriate.
- quicklook()#
Display a quicklook summary of the Map instance using the default web browser.
Notes
The image colormap uses histogram equalization.
Clicking on the image to switch between pixel space and coordinate space requires Javascript support to be enabled in the web browser.
Examples
>>> from sunpy.map import Map >>> import sunpy.data.sample >>> smap = Map(sunpy.data.sample.AIA_171_IMAGE) >>> smap.quicklook()
(which will open the following content in the default web browser)
<sunpy.map.sources.sdo.AIAMap object at 0x7f730fb18b60>
Observatory SDO Instrument AIA 3 Detector AIA Measurement 171.0 Angstrom Wavelength 171.0 Angstrom Observation Date 2011-06-07 06:33:02 Exposure Time 0.234256 s Dimension [1024. 1024.] pix Coordinate System helioprojective Scale [2.402792 2.402792] arcsec / pix Reference Pixel [511.5 511.5] pix Reference Coord [3.22309951 1.38578135] arcsec Image colormap uses histogram equalization
Click on the image to toggle between units
- reproject_to(target_wcs, *, algorithm='interpolation', return_footprint=False, **reproject_args)#
Reproject the map to a different world coordinate system (WCS)
Note
This method requires the optional package
reproject
to be installed.Additional keyword arguments are passed through to the reprojection function.
- Parameters:
- Returns:
outmap (
GenericMap
) – The reprojected mapfootprint (
ndarray
) – Footprint of the input arary in the output array. Values of 0 indicate no coverage or valid values in the input image, while values of 1 indicate valid values. Intermediate values indicate partial coverage. Only returned ifreturn_footprint
isTrue
.
Notes
The reprojected map does not preserve any metadata beyond the WCS-associated metadata.
The supported
reproject
algorithms are:‘interpolation’ for
reproject_interp()
‘adaptive’ for
reproject_adaptive()
‘exact’ for
reproject_exact()
See the respective documentation for these functions for additional keyword arguments that are allowed.
Masking HMI based on the intensity of AIA
Masking HMI based on the intensity of AIAAligning AIA and HMI Data with Reproject
Aligning AIA and HMI Data with ReprojectCreating Carrington MapsReprojecting Images to Different Observers
Reprojecting Images to Different ObserversReprojecting Using a Spherical Screen
Reprojecting Using a Spherical ScreenReprojecting to a Map Projection with a Custom Origin
Reprojecting to a Map Projection with a Custom OriginBlending maps togetherCreating a Composite Plot with Three Maps
Creating a Composite Plot with Three MapsOverlay an AIA image on a LASCO C2 coronagraph
Overlay an AIA image on a LASCO C2 coronagraphPlotting the solar equator and prime meridian
Plotting the solar equator and prime meridianDifferentially rotating a map
- resample(dimensions: Unit('pix'), method='linear')#
Resample to new dimension sizes.
Uses the same parameters and creates the same coordinate lookup points as IDL’’s congrid routine, which apparently originally came from a VAX/VMS routine of the same name.
- Parameters:
dimensions (
Quantity
) – Output pixel dimensions. The first argument corresponds to the ‘x’ axis and the second argument corresponds to the ‘y’ axis.method (str) –
- Method to use for resampling interpolation.
'nearest'
and'linear'
- Use n x 1-D interpolations usingscipy.interpolate.interp1d
.'spline'
- Uses piecewise polynomials (splines) for mapping the input array to new coordinates by interpolation usingscipy.ndimage.map_coordinates
.
- Returns:
out (
GenericMap
or subclass) – Resampled map
References
- rotate(angle: Unit('deg') = None, rmatrix=None, order=3, scale=1.0, recenter=False, missing=nan, *, method='scipy', clip=True)#
Returns a new rotated and rescaled map.
Specify either a rotation angle or a rotation matrix, but not both. If neither an angle or a rotation matrix are specified, the map will be rotated by the rotation information in the metadata, which should derotate the map so that the pixel axes are aligned with world-coordinate axes.
- Parameters:
angle (
Quantity
) – The angle (degrees) to rotate counterclockwise.rmatrix (array-like) – 2x2 linear transformation rotation matrix.
order (int) – Interpolation order to be used. The precise meaning depends on the rotation method specified by
method
. Default: 3scale (float) – A scale factor for the image, default is no scaling
recenter (bool) – If
True
, position the reference coordinate at the center of the new map Default:False
missing (float) – The value to use for pixels in the output map that are beyond the extent of the input map. Default:
numpy.nan
method ({
'scipy'
,'scikit-image'
,'opencv'
}, optional) – Rotation function to use. Defaults to'scipy'
.clip (
bool
, optional) – IfTrue
, clips the pixel values of the output image to the range of the input image (including the value ofmissing
, if used). Defaults toTrue
.
- Returns:
out (
GenericMap
or subclass) – A new Map instance containing the rotated and rescaled data of the original map.
See also
sunpy.image.transform.affine_transform
The routine this method calls for the rotation.
Notes
The rotation information in the metadata of the new map is modified appropriately from that of the original map to account for the applied rotation. It will solely be in the form of a PCi_j matrix, even if the original map used the CROTA2 keyword or a CDi_j matrix.
If the map does not already contain pixels with
numpy.nan
values, settingmissing
to an appropriate number for the data (e.g., zero) will reduce the computation time.For each NaN pixel in the input image, one or more pixels in the output image will be set to NaN, with the size of the pixel region affected depending on the interpolation order. All currently implemented rotation methods require a convolution step to handle image NaNs. This convolution normally uses
scipy.signal.convolve2d()
, but if OpenCV is installed, the faster cv2.filter2D() is used instead.See
sunpy.image.transform.affine_transform()
for details on each of the rotation functions.
- save(filepath, filetype='auto', **kwargs)#
Save a map to a file.
- Parameters:
filepath (
str
) – Location to save the file to. Iffilepath
ends with “.asdf” andfiletype="auto"
, an ASDF file will be created.filetype (
str
, optional) – The file format to save the map in. Defaults to"auto"
which infers the format from the file extension. Supported formats include FITS, JP2, and ASDF.hdu_type (
ExtensionHDU
instance or class, optional) – For FITS files, this specifies the type of HDU to write. By default, the map is saved in the primary HDU. If an HDU type or instance is provided, the map data and header will be written to that HDU. For example,astropy.io.fits.CompImageHDU
can be used to compress the map.kwargs – Any additional keyword arguments are passed to
write_file
orasdf.AsdfFile.write_to
.
Notes
Saving with the jp2 extension will write a modified version of the given data casted to uint8 values in order to support the JPEG2000 format.
Saving with the
.asdf
extension will save the map as an ASDF file, storing the map’s attributes under the key'sunpymap'
in the ASDF tree.Examples
>>> from astropy.io.fits import CompImageHDU >>> from sunpy.map import Map >>> import sunpy.data.sample >>> aia_map = Map(sunpy.data.sample.AIA_171_IMAGE) >>> aia_map.save("aia171.fits", hdu_type=CompImageHDU) >>> aia_map.save("aia171.asdf")
- shift_reference_coord(axis1: Unit('deg'), axis2: Unit('deg'))#
Returns a map shifted by a specified amount to, for example, correct for a bad map location. These values are applied directly to the
reference_coordinate
. To check how much the reference coordinate has been modified, seesunpy.map.GenericMap.meta.modified_items['CRVAL1']
andsunpy.map.GenericMap.meta.modified_items['CRVAL2']
.- Parameters:
- Returns:
out (
GenericMap
or subclass) – A new shifted Map.
- std(*args, **kwargs)#
Calculate the standard deviation of the data array, ignoring NaNs.
- submap(bottom_left, *, top_right=None, width: Unit('deg'), Unit('pix') = None, height: Unit('deg'), Unit('pix') = None)#
Returns a submap defined by a rectangle.
Any pixels which have at least part of their area inside the rectangle are returned. If the rectangle is defined in world coordinates, the smallest array which contains all four corners of the rectangle as defined in world coordinates is returned.
- Parameters:
bottom_left (
astropy.units.Quantity
orSkyCoord
) – The bottom-left coordinate of the rectangle. If aSkyCoord
it can have shape(2,)
and simultaneously definetop_right
. If specifying pixel coordinates it must be given as anQuantity
object with units of pixels.top_right (
astropy.units.Quantity
orSkyCoord
, optional) – The top-right coordinate of the rectangle. Iftop_right
is specifiedwidth
andheight
must be omitted.width (
astropy.units.Quantity
, optional) – The width of the rectangle. Required iftop_right
is omitted.height (
astropy.units.Quantity
) – The height of the rectangle. Required iftop_right
is omitted.
- Returns:
out (
GenericMap
or subclass) – A new map instance is returned representing to specified sub-region.
Notes
When specifying pixel coordinates, they are specified in Cartesian order not in numpy order. So, for example, the
bottom_left=
argument should be[left, bottom]
.Examples
>>> import astropy.units as u >>> from astropy.coordinates import SkyCoord >>> import sunpy.map >>> import sunpy.data.sample >>> aia = sunpy.map.Map(sunpy.data.sample.AIA_171_IMAGE) >>> bl = SkyCoord(-300*u.arcsec, -300*u.arcsec, frame=aia.coordinate_frame) >>> tr = SkyCoord(500*u.arcsec, 500*u.arcsec, frame=aia.coordinate_frame) >>> aia.submap(bl, top_right=tr) <sunpy.map.sources.sdo.AIAMap object at ...> SunPy Map --------- Observatory: SDO Instrument: AIA 3 Detector: AIA Measurement: 171.0 Angstrom Wavelength: 171.0 Angstrom Observation Date: 2011-06-07 06:33:02 Exposure Time: 0.234256 s Dimension: [335. 335.] pix Coordinate System: helioprojective Scale: [2.402792 2.402792] arcsec / pix Reference Pixel: [126.5 125.5] pix Reference Coord: [3.22309951 1.38578135] arcsec ...
>>> aia.submap([0,0]*u.pixel, top_right=[5,5]*u.pixel) <sunpy.map.sources.sdo.AIAMap object at ...> SunPy Map --------- Observatory: SDO Instrument: AIA 3 Detector: AIA Measurement: 171.0 Angstrom Wavelength: 171.0 Angstrom Observation Date: 2011-06-07 06:33:02 Exposure Time: 0.234256 s Dimension: [6. 6.] pix Coordinate System: helioprojective Scale: [2.402792 2.402792] arcsec / pix Reference Pixel: [511.5 511.5] pix Reference Coord: [3.22309951 1.38578135] arcsec ...
>>> width = 10 * u.arcsec >>> height = 10 * u.arcsec >>> aia.submap(bl, width=width, height=height) <sunpy.map.sources.sdo.AIAMap object at ...> SunPy Map --------- Observatory: SDO Instrument: AIA 3 Detector: AIA Measurement: 171.0 Angstrom Wavelength: 171.0 Angstrom Observation Date: 2011-06-07 06:33:02 Exposure Time: 0.234256 s Dimension: [5. 5.] pix Coordinate System: helioprojective Scale: [2.402792 2.402792] arcsec / pix Reference Pixel: [125.5 125.5] pix Reference Coord: [3.22309951 1.38578135] arcsec ...
>>> bottom_left_vector = SkyCoord([0, 10] * u.deg, [0, 10] * u.deg, frame='heliographic_stonyhurst') >>> aia.submap(bottom_left_vector) <sunpy.map.sources.sdo.AIAMap object at ...> SunPy Map --------- Observatory: SDO Instrument: AIA 3 Detector: AIA Measurement: 171.0 Angstrom Wavelength: 171.0 Angstrom Observation Date: 2011-06-07 06:33:02 Exposure Time: 0.234256 s Dimension: [70. 69.] pix Coordinate System: helioprojective Scale: [2.402792 2.402792] arcsec / pix Reference Pixel: [1.5 0.5] pix Reference Coord: [3.22309951 1.38578135] arcsec ...
- superpixel(dimensions: Unit("pix"), offset: Unit("pix") = <Quantity [0., 0.] pix>, func=<function sum>)#
Returns a new map consisting of superpixels formed by applying ‘func’ to the original map data.
- Parameters:
dimensions (tuple) – One superpixel in the new map is equal to (dimension[0], dimension[1]) pixels of the original map. The first argument corresponds to the ‘x’ axis and the second argument corresponds to the ‘y’ axis. If non-integer values are provided, they are rounded using
int
.offset (tuple) – Offset from (0,0) in original map pixels used to calculate where the data used to make the resulting superpixel map starts. If non-integer value are provided, they are rounded using
int
.func – Function applied to the original data. The function ‘func’ must take a numpy array as its first argument, and support the axis keyword with the meaning of a numpy axis keyword (see the description of
sum
for an example.) The default value of ‘func’ issum
; using this causes superpixel to sum over (dimension[0], dimension[1]) pixels of the original map.
- Returns:
out (
GenericMap
or subclass) – A new Map which has superpixels of the required size.
- world_to_pixel(coordinate)#
Convert a world (data) coordinate to a pixel coordinate.
- Parameters:
coordinate (
SkyCoord
orBaseCoordinateFrame
) – The coordinate object to convert to pixel coordinates.- Returns:
